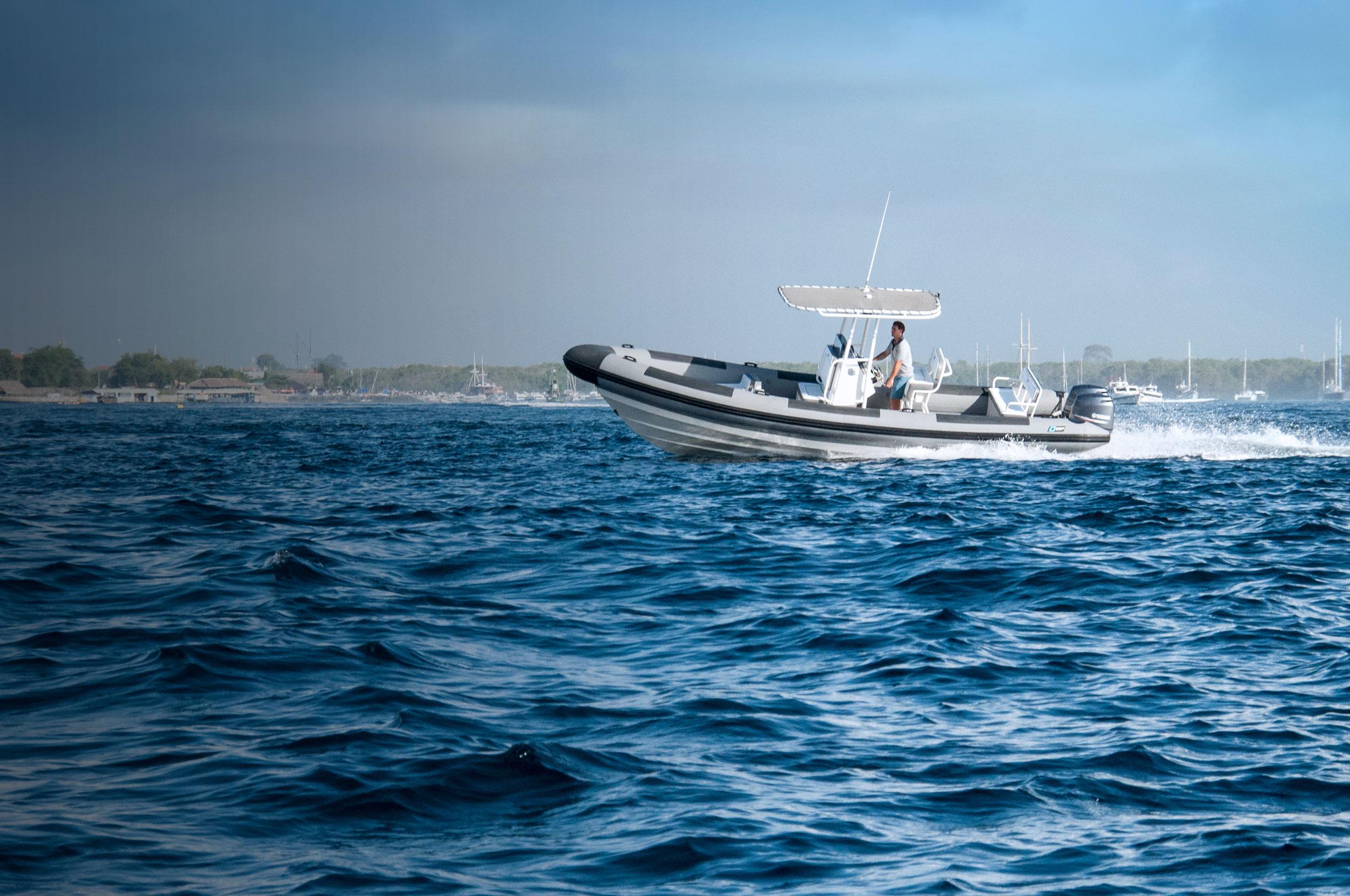

Outborn RIB 8.5 M RHIBS Boat Model Outborn Watercraft

8.5m Model

———— OUTBORN RIB ————

Heavy deep-V off-shore boat, suitable for rough conditions. Good for the extreme user as well as leisure use. Great versality. Seamless tube construction for great aesthetics. The hull is constructed using vacum infusion with a closed cell linear core. Increases rigidity, strength while remaining lightweight. Fantastic power to weight ratio. Also available with a full-cabin top.

Specs Features Options Layout

Specification

LOA	8.5 m
BOA	2.82 m
Draft	0.55 m
Disp	2,200 kg
Deadrise	24°
Range	235 nm
Fuel	447 L
Tube Diam	530 mm
HP min	300 HP
HP max	500 HP
Design Category	B (Offshore)
	Corecell Sandwich Construction Vacuum Infusion

Standard Features

Console with front access hatch
Single pod seat with hinged storage locker and high backrest
Console grab rail
Heavy duty dark grey Hypalon® tube with five (5) chambers
Pressure relief valves
External Lifelines
Heavy duty black rubstrake
Stainless steel bow eye
Anchor locker
Bow cleat
Lifting points
Transom tie down eyes
Marine battery with box
Electric bilge pump
Underdeck wire conduit
Light grey gelcoat
Foot pump
Aft sump
Molded non-skid deck

Optional Equipment

Additional Pod Seat
Two Person Bench Seat
Aft Tow Post
Transom Bollards
Boarding wear patches
Tube grab handles
Paddle/hook retainers
Custom Hypalon® lettering
Hypalon Burgee
PropGuard

——— LAYOUT ———

8M-1_LAYOUT

OUTBORN RIB 8.5m #1

8M-2_LAYOUT

OUTBORN RIB 8.5m #2

8M-3_LAYOUT

OUTBORN RIB 8.5m #3
