9m Model

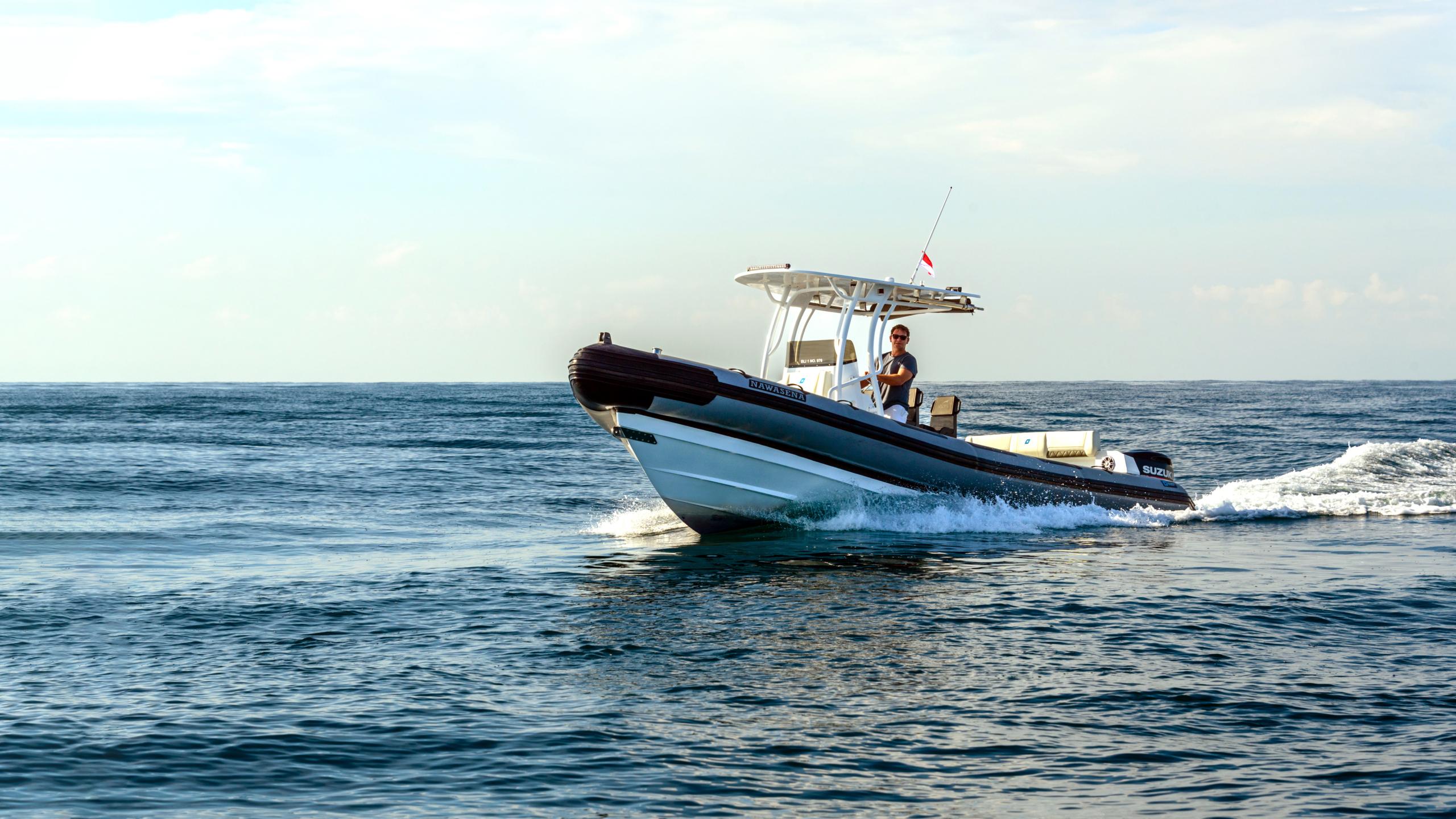

———— OUTBORN RIB ————

Can integrate a head in the console. Ample space for water tanks, fresh water showers to enjoy a day out. Moderate dead-rise, lots of option for shade. Incorporates a D-section collar to maximise internal space.

Find Out More
SpecsFeaturesOptionsLayout

Specification

LOA9.09 m
LWL7.43 m
BOA2.95 m
BWL2.21 m
Draft (Canoe Body)0.55 m
Draft (Engines Down)0.89 m
Disp (design)3,471 kg
Freeboard1.2 m
HP max500 HP
Vs40+ knot
Deadrise22°
Fuel400 L
Water54 L
Design CategoryB (Offshore)
Lp/Bx3.64
Ap13.25 m²
Ap/Disp⅔5.78
LCB63.3 %
Range200 nm

Standard Features

  • Console with front access hatch
  • Single pod seat with hinged storage locker and high backrest
  • Console grab rail
  • Heavy duty dark grey Hypalon® tube with five (5) chambers
  • Pressure relief valves
  • External Lifelines
  • Heavy duty black rubstrake
  • Stainless steel bow eye
  • Anchor locker
  • Bow cleat
  • Lifting points
  • Transom tie down eyes
  • Marine battery with box
  • Electric bilge pump
  • Underdeck wire conduit
  • Light grey gelcoat
  • Foot pump
  • Aft sump
  • Molded non-skid deck

Optional Equipment

  • Additional Pod Seat
  • Two Person Bench Seat
  • Aft Tow Post
  • Transom Bollards
  • Boarding wear patches
  • Tube grab handles
  • Paddle/hook retainers
  • Custom Hypalon® lettering
  • Hypalon Burgee
  • PropGuard

——— LAYOUT ———

OUTBORN RIB 9m #1

OUTBORN RIB 9m #2

Load more

Build Your Own 9m Model

Please fill the information below to build your own 9 meter RIB model.

Hull

Tube/Collar

Console

Equipments & Accessories

Electronics

Your Information
